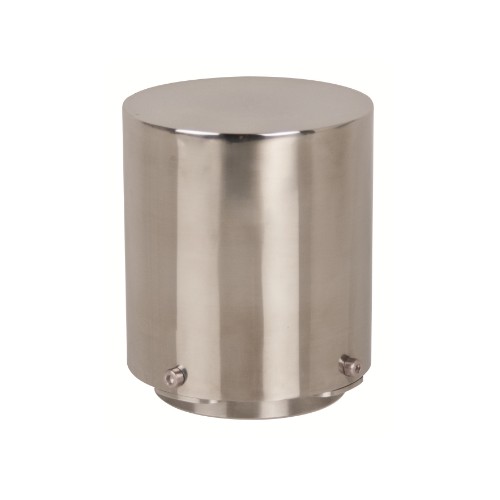

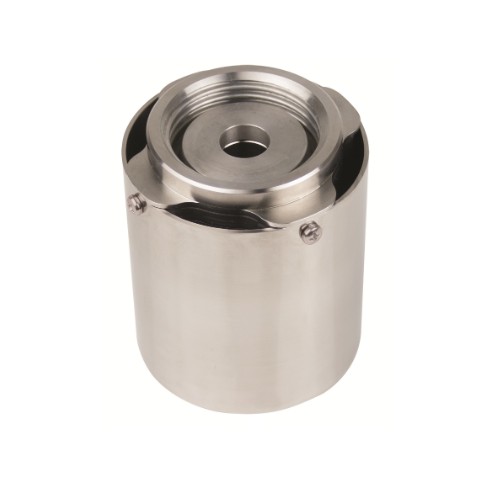

AVFC – Stainless Steel Air Venting Filter

$396.00 – $1,617.00

AVFC stainless steel filter housings are designed to remove impurities from air which is being feed or exhausted from tank during changing of liquid level. To meet the required compressed air quality appropriate filter element (typically AVFFC filtration grade) must be installed into filter housing.

SKU: N/A Category:

Description

AVFC stainless steel filter housings are designed to remove impurities from air which is being feed or exhausted from tank during changing of liquid level. To meet the required compressed air quality appropriate filter element (typically AVFFC filtration grade) must be installed into filter housing.

Applications:

 Packing industry
 Biotechnology
 Breweries
 Chemical industry
 Dairies
 Fermentation processes
 Food & beverage industry
 Pharmaceutical industry
 Water treatment systems

Technical Data:

Operating temperature Up to 200 °C Up to 302 °F
Operating pressure Ambient pressure (max 1.0 bar(g) due to pressure drop on filter element)
Housing material Stainless steel quality 1.4404 (grade 316L); on request 1.4301 (grade 304)
Housing finishes Polished down to grade Ra0,8

Maintenance:

Replace filter element at least every 12 months or follow the instructions for specific application.
Once per year make a visual check on filter housing and make sure there is no visual damage.

Additional information

Pipe Size & Flow Rate

DN32 (DIN 11851) – 9 Nm²/h, DN40 (DIN 11851) – 25Nm²/h, DN50 (DIN 11851) – 40Nm²/h, DN50 (DIN 11851) – 110Nm²/h, DN80 (DIN 11851) – 210Nm²/h, DN80 (DIN 11851) – 310Nm²/h, DN40 (ISO 1127) – 9 Nm²/h, DN40 (ISO 1127) – 25Nm²/h, DN50 (ISO 1127) – 40Nm²/h, DN50 (ISO 1127) – 110Nm²/h, DN80 (ISO 1127) – 210Nm²/h, DN80 (ISO 1127) – 310Nm²/h
Filter Element

Yes, No
