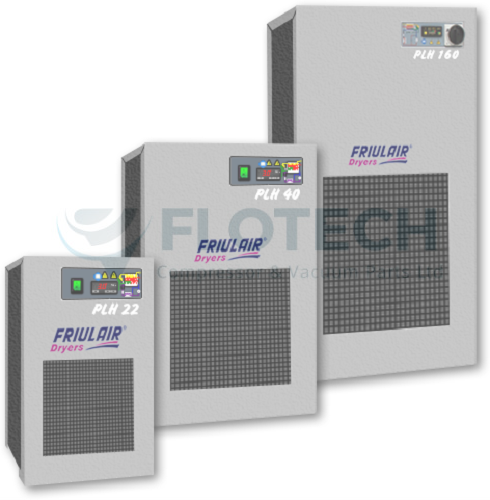

PLH series (high pressure dryers for compressed air systems up to 50 barg) makes the most of manufacturing and functional advantages of brazed plate heat exchangers, which are more suitable for high pressure working conditions (on models PLH 15-500).

Technical Data:

Clear
SKU: N/A Categories: , ,

Description

Technical Data:

Model Number Flow Rate Connections        Power Supply
m³/h l/min scfm BSP-F
PLH 4c 417 25 15 G 3/8″ 1/230/50-60
PLH 8c 800 45 28 G 3/8″ 1/230/50-60
PLH 12c 1,200 72 42 G 3/8″ 1/230/50-60
PLH 15 1,500 90 53 G 3/4″ 1/230/50-60
PLH 22 2,250 135 80 G 3/4″ 1/230/50
PLH 30 3,000 180 106 G 3/4″ 1/230/50
PLH 40 4,000 240 141 G 3/4″ 1/230/50
PLH 50 5,250 315 186 G 1″ 1/230/50
PLH 75 7,500 450 265 G 1″ 1/230/50
PLH 100 10,250 615 362 G 1″ 1/230/50
PLH 130 13,500 810 477 G 1.1/2″ 1/230/50
PLH 160 16,800 1,008 594 G 1.1/2″ 1/230/50
PLH 50 3~ 5,250 315 186 G 1″ 3/400/50
PLH 75 3~ 7,500 450 265 G 1″ 3/400/50
PLH 100 3~ 10,250 615 362 G 1″ 3/400/50
PLH 130 3~ 13,500 810 477 G 1.1/2″ 3/400/50
PLH 160 3~ 16,800 1,008 594 G 1.1/2″ 3/400/50
PLH 210 21,000 1,260 742 G 2″ 3/400/50
PLH 270 27,000 1,620 954 G 2″ 3/400/50
PLH 380 38,000 2,280 1,343 G 2″ 3/400/50
PLH 400 40,500 2,430 1,431 FL. ANSI 3″ 3/400/50
PLH 500 50,500 3,030 1,784 FL. ANSI 3″ 3/400/50
PLH 660 67,000 4,020 2,367 FL. ANSI 3″ 3/400/50
PLH 830 83,000 5,010 2,950 FL. ANSI 3″ 3/400/50

All the stainless steel plate heat exchangers used are manufactured by primary companies and are specifically designed for air dryer applications and certified for high pressure (up to 50 barg).

The refrigerant circuit and demister type condensate separator are projected and dimensioned to increase dryer performance, and comply to the 97/23/CE-PED directive.

Main Features:

  • Simple and ergonomic component layouts guarantee functionality and efficiency;
  • Excellent performance due to low pressure drop and constant pressure Dew Point;
  • Dryer design is very attractive both aesthetically with a two tone cabinet and practically with a robust casing.

Details:

The hoods are easily removed and offer immediate access to all parts of the system. The clear layout of the components, the simple composition of the refrigerant circuit and the numbering of the wires in the electrical system, facilitate the operator when carrying out standard controls.
All models are also fitted with a system that monitors condensate and a safety pressure switch to prevent the pressure of the refrigerant from rising.

“Hot Gas” By-Pass Valve:

The precise and accurate hot gas by-pass valve, which prevents the formation of ice inside the evaporator at any load condition, is a recent development unavailable in the past.
The valve is set during final test and no further adjustments are necessary.

Compressor:

PLH 4C…40 > Reciprocating type
Modelli PLH 50…160 > Rotary
Dal modello PLH 210 > Scroll
