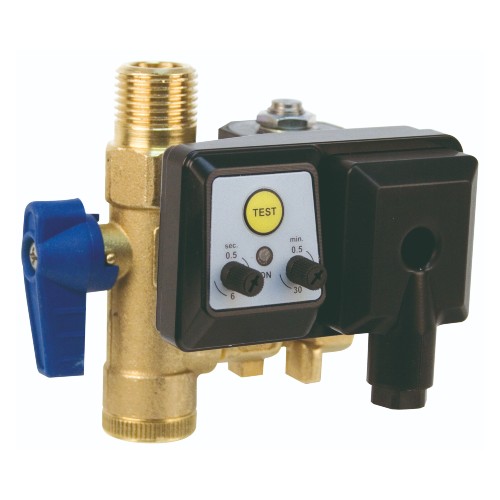

Timer Controlled Condensate Drain TDMFC

$100.98$155.52

TDM timer controlled condensate drain has been developed for reliable removal of condensate or other liquid from compressed air system. Discharge intervals can be set with two adjustment knobs. TDM drain is available in several types based on operating pressure and operating medium.

TD16MFC (16 Bar) – TD25MFC (25 Bar) – TD50MFC (50 Bar) – TD150MFC (150 Bar)



SKU: N/A Category:

Description

TDM timer controlled condensate drain has been developed for reliable removal of condensate or other liquid from compressed air system. Discharge intervals can be set with two adjustment knobs. TDM drain is available in several types based on operating pressure and operating medium.

Power Consumption 18VA (holding), 36 (inrush) / 50-60 Hz
Voltage 115 VAC or 230 VAC
Operating Pressure 0 to 150 bar
Operating Temperature 1,5 – 65 °C
Connection G 1/2″
Protection class IP 65

Additional information

Voltage

230 v, 115 v

Operating Pressure

16 Bar, 25 Bar, 50 Bar, 150 Bar
