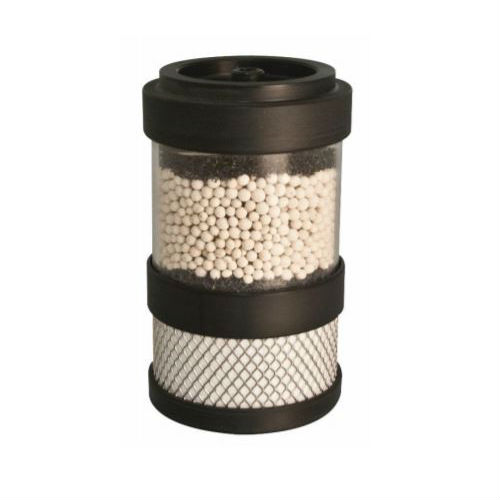

Point of Use: Inline Molecular Sieve Element MS² (0,1µm)

$91.50$574.50

High efficient removal of water vapour from small flows of compressed air-drying.

Technical Data:

Description

Inline Molecular Sieve Element – molecular sieve & particulate.

Rating according to ISO 8573-1

Solid Particles Class 1
Water Class –
Oils Class –

High efficient removal of water vapour from small flows of compressed air-drying.

Filter media borosilicate micro fibres
Adsorption media hopcalite
Operating temperature 1,5 – 45°C
Particle retention (nominal) 99,9999% (0,1µm)
Particle retention rate ISO 98,98%

Flow Rates:

Filter Element Type Pipe Size Flow Rate [Nm³/h] Flow Rate [cfm]
7050 1/2″ 78 46
14050 3/4″ 120 70
12075 1″ 198 116
22075 1″ 335 197
32075 1 1/2″ 510 300
50075 1 1/2″ 780 458



Additional information

Pipe Size - Flow Rate

1/2" – 46 scfm, 3/4" – 70 scfm, 1" – 116 scfm, 1" – 197 scfm, 1 1/2" – 300 scfm, 1 1/2" – 459 scfm
