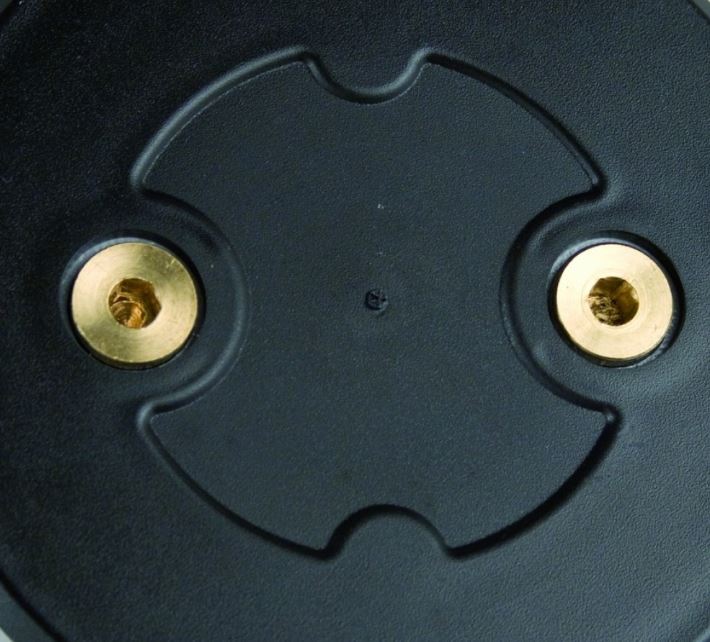

HFFC – Cast Aluminium High Pressure Filter

$218.00$2,370.00

HFFC filters are designed for high efficient removal of solid particles, water, oil aerosols, hydrocarbons and other vapours from compressed air systems. To meet the required compressed air quality appropriate filter element (B, P, XR, XM, XS, A,CKL) must be installed into filter housing. Optional external condensate drains should be used for efficient condensate draining from filter housing.

SKU: N/A Category:

Description

HFFC filters are designed for high efficient removal of solid particles, water, oil aerosols, hydrocarbons and other vapours from compressed air systems. To meet the required compressed air quality appropriate filter element (B, P, XR, XM, XS, A,CKL) must be installed into filter housing. Optional external condensate drains should be used for efficient condensate draining from filter housing.

Characteristics

operating pressure  50 bar
volume flow rate  71 to 2760 Nm3/h
connections  1/2’’ to 3’’
operating temp. range  1,5 to 65 °C
standard colour  RAL 5012

Applications

• general industrial applications
• automotive
• electronics
• food and beverage
• chemical
• petrochemical
• PET
• paint

Additional information

Pipe Size & Flow Rate

1/2", 42 scfm, 3/4", 66 scfm, 1", 120 scfm, 1 1/2" , 166 scfm, 1 1/2", 235 scfm, 2", 291 scfm, 2", 470scfm, 3", 1270 scfm, 3", 1620 scfm

Filter Element

B (15 micron), P (3 micron), XR (1 micron), XM (0.1 micron), XS (0.01 micron), A (activated carbon), CKL (separator), Housing Only
