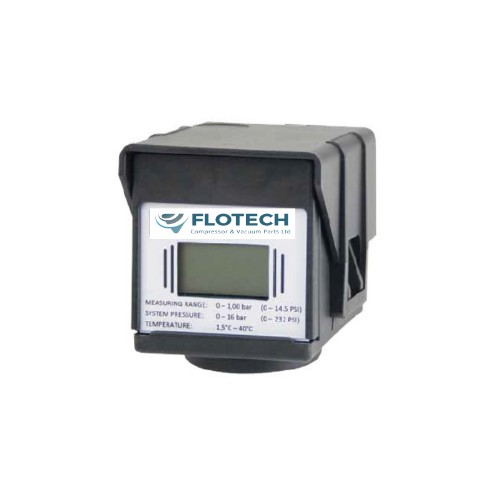

EPGFC – Electronic Pressure Gauge (16 bar)

$158.76$204.12

Electronic pressure gauge has been specifically designed to alert for element replacement based on pressure difference or cartridge age.

SKU: N/A Category:

Description

Electronic pressure gauge has been specifically designed to alert for element replacement based on pressure difference or cartridge age. EPG is suitable for installation on the filter head. It is battery operated and has voltage free contact output. Specially designed electronics and measurement system ensures a long operating life over 1 year with ordinary simple AA batteries.

Applications

• Automotive
• Electronics
• Food & Beverage
• Chemical
• Petrochemical
• Plastics
• Paint
• General industrial application

Technical Specification

System pressure range                                   0 – 16 bar                            0 – 232 psi
Differential pressure range                           0,07 bar – 1,00 bar         1.0 – 14.5 psi
Maximal differential pressure                     1 bar                                      14.7 psi
Accuracy                                                                                         5%
Operating temperature  Ambient              1,5°C – 40°C                       34.7 – 104°F
Compressed Air                                                 1,5°C – 65°C                       34.7 – 149°F
Mass                                                                       130 g                                     0.287 lbs

Materials

Housing PA6, glass fibres
Sealing NBR

Types

EPG-SN
(EPG-21.300)
EPG
(EPG-21.301)
EPG-AO
(EPG-21.500)
Service Network Connection possible Yes No No
Output Signal No No 4 – 20 mA
Battery life time > 1 year (alkaline AA)

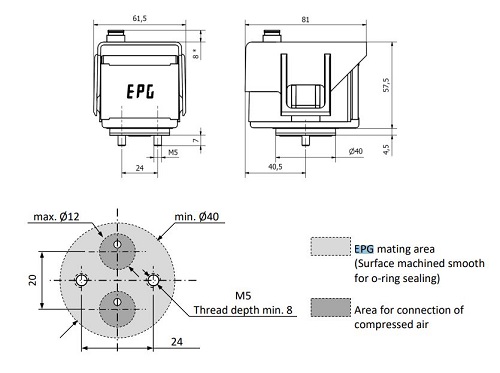

Dimensions

Maintenance

Once per year make a visual check of the pressure gauge and make sure there is no visual damage or leakage.

Additional information

Size

EPG60FC, EPG60SNFC, EPG60AOFC
