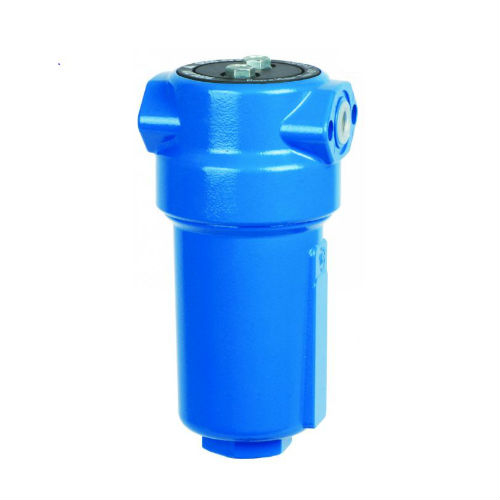

AAF Series – Aluminium Compressed Air Filters (16 bar)

$55.20$98.40

AAF filters are designed for protection of the downstream compressed air system and equipment with lower air flows against defects and other failures.

Technical Data:

Click HERE to see all AAF Series Filter Elements.

Clear

Description

AAF filters are designed for protection of the downstream compressed air system and equipment with lower air flows against defects and other failures. They ensure high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odour and vapours from compressed air systems up to 16 bar. Required compressed air quality according to standard ISO 8571-1 can be achieved with 5 different grades of filter elements (P, R, M, S and A). Optional internal and external condensate drains should be used for efficient condensate draining from filter housing.

Characteristics

Operating Pressure 16 bar
Volume Flow Rate 10 – 780 Nm³/h
Connections 1/8″ to 11/2″
Operating Temp. Range 1,5 to 65 °C
Standard Colour RAL 5012, RAL 7040

Applications

• general industrial applications
• automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
• paint

Technical Data

Filter Housing Size Pipe Size Max Oper. Pressure Flow Rate at 7 bar(g), 20 °C
inch bar/psi Nm³/h scfm
AAF 0016* 1/4” 16/232 18 11
AAF 0026 1/4” 16/232 25 15
AAF 0036 3/8” 16/232 30 18
AAF 0046 1/4” 16/232 35 22
AAF 0056 3/8” 16/232 60 35
AAF 0076 1/2” 16/232 78 46
AAF 0106 3/4” 16/232 120 70

*For size AAF0016 no differential pressure indicator and no internal condensate drain is available, IED not available

Please note:

  • Filter Elements A must be changed periodically to suit application, but at least every 6 months. Activated carbon filters must not operate in oil saturated conditions.
  • Valid if S filter cartridge is installed upstream.

Dimensions & Mass

Dimensions
Mass
KG
125 55 14 70 0,24
145 73 18 50 0,42
145 73 18 50 0,42
189 88 32 60 0,72
189 88 32 60 0,71
189 88 32 80 0,7
257 88 32 150 0,78

Correction Factors



Operating Pressure [bar] 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Operating pressure [psi] 29 44 58 72 87 100 115 130 145 160 174 189 203 218 232
Correction factor 0.38 0.5 0.63 0.75 0.88 1 1.13 1.25 1.38 1.5 1.63 1.75 1.88 2 2.13

Filter Elements:

Condensate Drains:



Manual Condensate Drain -1/2″ Brass
Automatic Condensate Drain 1/2″
Manual Condensate Drain – 1/2″ Nylon
Automatic Condensate Drain – 1/2″
Electronic Superplus Drain – No Loss



Differential Pressure Indicators:

Differential Pressure Gauge – MDA60 (20 bar)
Magnetic Differential Manometer – MDM 40 (20 bar)
Differential Pressure Indicators – PDi16 (16 bar)



















Additional information

Pipe Size & Flow Rate

1/4", 11 scfm, 1/4", 15 scfm, 3/8", 18 scfm, 1/4", 22 scfm, 3/8", 35scfm, 1/2", 46 scfm, 3/4", 70 scfm
